LogWeight Software

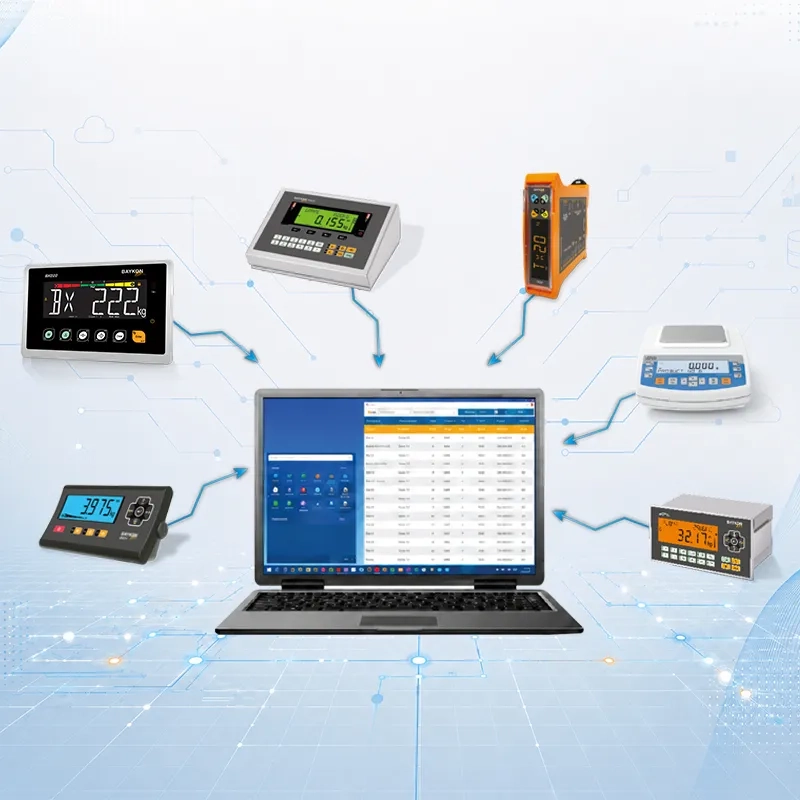

BAYKON LogWeight software series allows you to reliably collect, record, monitor, and seamlessly integrate data from industrial weighing processes into your operational workflows.
With Microsoft SQL-based data storage, Excel export, Ethernet TCP/IP communication, web and mobile access, ERP/API integration, and multi-device connectivity, you can manage production, tank weighing, portioning, reporting, and remote monitoring applications from a single platform. This helps you improve process traceability and increase operational efficiency.
With LogWeight, weighing data becomes more than a recorded measurement. You can use it as a strategic source of information to:
Highlights
Functional Features
LogWeight

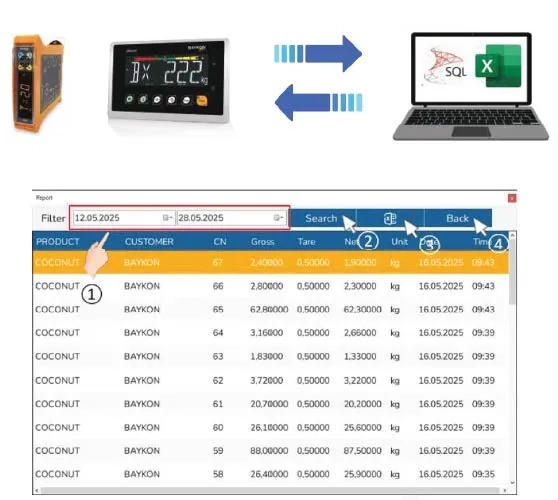

- Records weighing data in MSSQL or Excel.
- Operates as point-to-point with all BAYKON instruments.
- Saves records in Excel reliably whether the file is open or not.
- Communicates via RS232C,
- RS485 or Eth. TCP/IP ports.
LogWeight-C

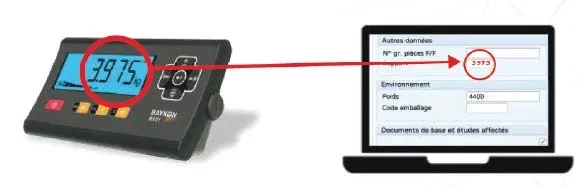

- Transfers weight data to the curser position of any program without the need for external software development.
- It functions by pressing Indicator's PRINT key or assigned function key on the PC.A text or keyboard shortcuts after the weight data can be added.
- Communicates via Ethernet TCP/IP or RS232C ports.

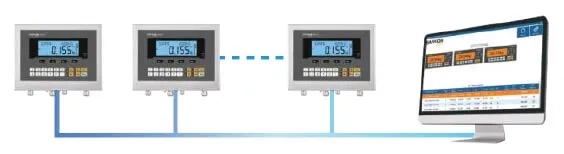

LogWeight-Plus
Connectable up to 24 advanced series terminals (BX23-24-25).
Real-time data transfer in MSSQL file.
For file transfer, records can be saved in the SD memory of BX23-24-25 terminals.
Used in weighing and portioning processes to provide production and operator performance analysis with statistical reporting features.
Communicates via Ethernet TCP/IP ports.

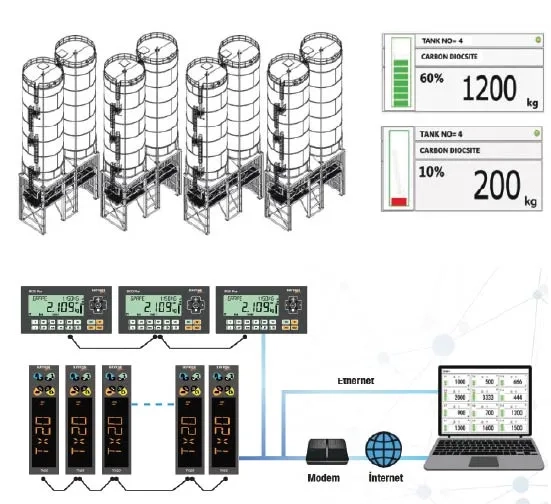

LogWeight-T
- Up to 24 devices can be connected as standard. This number can be increased upon request.
- This software allows the weight of multiple tanks to be monitored remotely from a computer.
- On the monitoring screen, each tank can be assigned a name or number, color, and ID for product name.
- Tank weight, tank fill level graph bar, fill percentage, and colored overfill and empty levels can be monitored.

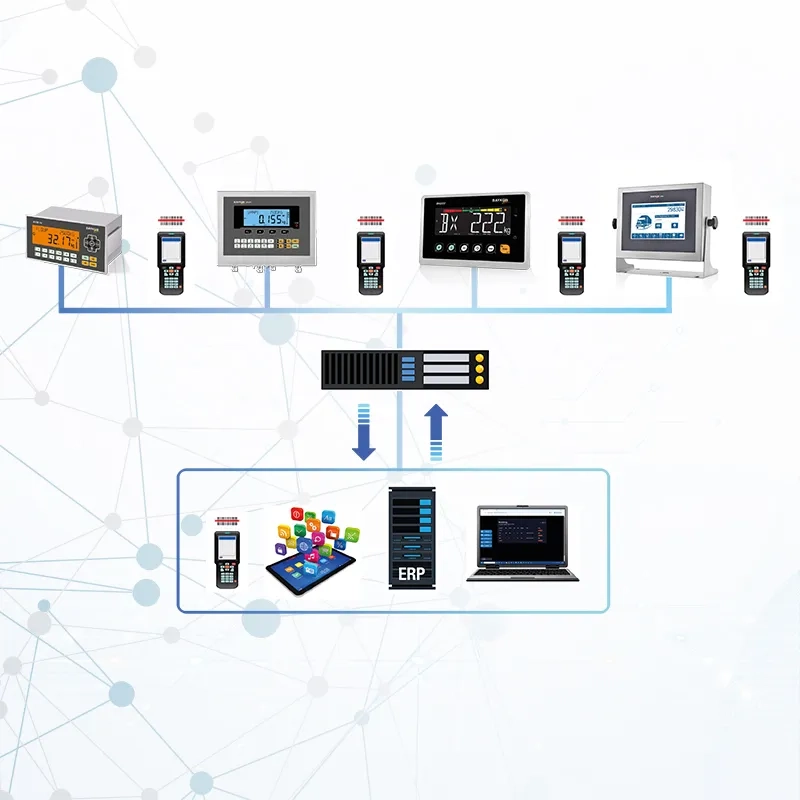

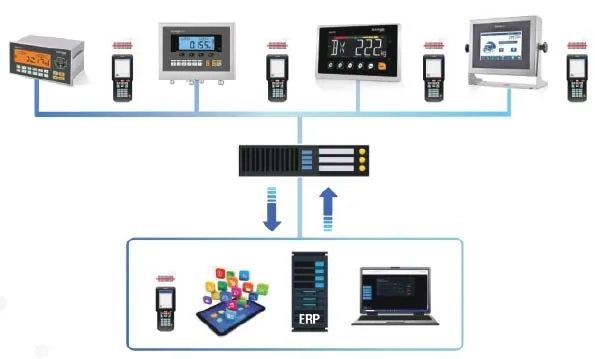

LogWeight-Web
- Connectable up to 250 weighing scales (Baykon, Radwag)
- Communications with API services to ERP
- Connection to a computer via Ethernet TCP/IP or RS485
- The weighing device's configuration and weighing data are monitored via a computer screen and a mobile device through web browser.
LogWeight Software Versions
- LogWeight
- LogWeight-C
- LogWeight-Plus
- LogWeight-T
- LogWeight-Web
- LogWeight-Editor
- LogWeight-SQLR
Documents
Name
Version
Description
Category
Data Type
LogWeight Software Catalogue
Product Catalogs
