BX23/BX23D Weighing Indicator

Baykon BX23 & BX23D are low cost weighing terminals; offer high accuracy, and performance with strong connectivity options for all weighing applications. With its IP67 protected stainless steel housing, it provides reliable and safe operation in wet, hygienic and harsh industrial areas.



BX23 & BX23D have strong calibration alternatives including eCAL electronic calibration which is extremely important tool for heavy capacity tank scales and calibration of tanks without emptying.



For connectivity, BX23 & BX23D have 2 x RS232C, 1 x RS485, Ethernet TCP/IP and 1 x USB as standards; and for optional interfaces they have Analogue output, EtherNet/IP, Profibus, Profinet, CANopen, EtherCAT, CC-Link, Powerlink and Digital I/O with 4 opto isolated inputs and 5 relay outputs.



Add to Comparison List

Highlights

Measurement Type

Weight Measurement

Applications

Basic Weighing, Labelling, Dynamic Weighing, Tank Weighing, Truck Scale

Protection Class

IP67

Type of Device

Desk, Wall

Serial Communication

Analogue Output, RS232, RS485, USB, Modbus RTU

Industrial Communication

Modbus TCP, Ethernet TCP/IP, Profinet, Profinet S2, Profibus, EtherCAT, EtherNet/IP, CANopen, Powerlink, CC-Link

Wireless Communication

Bluetooth

Web/PC Access

Configuration by App, Data Collection

IoT

Yes

Digital Input & Output

Input, Output

Energy Supply

12V DC, 24V DC, 110-230V AC, Battery

Certificate

OIML

Trade Approval

Yes

Other Features

Unit Conversion, Alibi Memory, Data Logging, eCal, sCal, Multi-point adjustment

certificates
certificates
certificates
certificates
certificates

Functional Features

Main Features

functional
  • Stainless steel, IP67 protected for wet, hygienic and harsh areas
  • Color selectable LCD display with alphanumeric info line
  • Bar graph to follow gross weight capacity
  • Key based locking against interfering

High Technology and Performance

functional
  • Up to 999 999 display resolution
  • Up to 800 conversions per second
  • Smart and adaptive filter

Typical Applications

functional
  • Process weighing applications; tank, silo, hopper and conveyor weighing
  • Programmable display color
  • Livestock and dynamic weighing with strong dynamic weighing algorithm

Integration & Connectivity

functional
  • 2 x RS232C, RS485 (Modbus RTU) Ethernet TCP/IP (Modbus TCP), and USB are standard
  • Profibus, Profinet, CANopen, EtherNet/IP, EtherCAT, CC-Link, Powerlink, Analogue outputs, and Digital I/O are optional.

Technical Specifications

BX23/BX23D Weighing Indicator

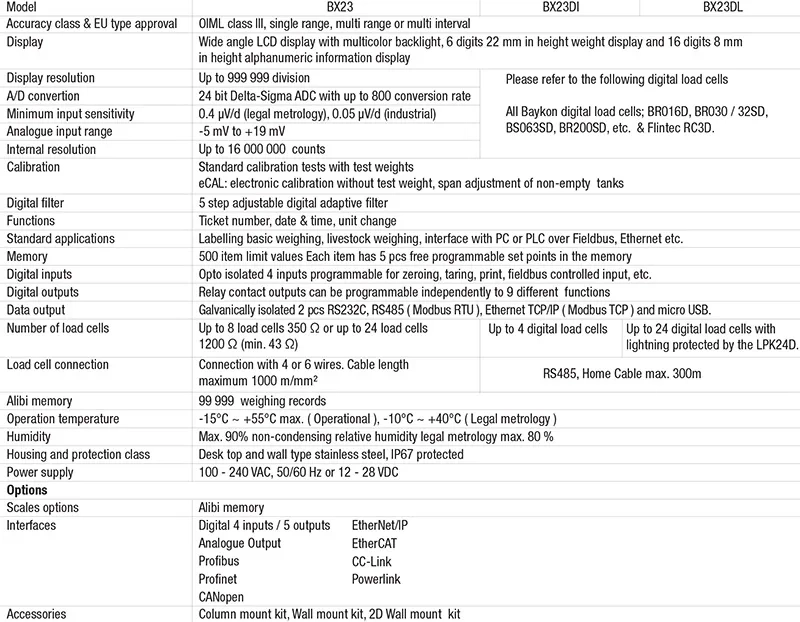

Technical Specifications

Dimensions

Documents

Name

Version

Description

File Size

Update Date

Category

Data Type

BX23_BX23D Weighing Indicator Catalogue

280.95 KB

22/02/2024 09:41:09

Product Catalogs

OIML Certificate Of Conf.(BX2x)

128.86 KB

25/01/2024 11:24:06

Certificates

ATEX Production Quality Assurance Certificate

335.28 KB

25/01/2024 11:24:12

Certificates
