BX24/BX24D Weighing Indicator
Baykon BX24 & BX24D are accurate, multifunctional weighing terminals which can be used in wet, hygienic and harsh industrial areas. Terminals have configurable operating modes for common weighing applications such as weighing, labelling, piece counting, checkweighing, classifying, dynamic weighing and filling. Depending on the application, 3 programmable keys can be set to related functions for quick and easy operation.
Instruments have 6 memories; ID1 & ID2, preset tare, APW and item limit values; each have 500 records capacity. IDs can be linked to other memory records for fast, easy and reliable operation; when an ID is selected, depending on the operation mode item limit values, specific tare or APW values comes automatically.
BX24 & BX24D offer direct connection to remote display, PC and PLCs via various data protocols such as demand, continuous form and BSI command set.
Highlights
Measurement Type
Weight Measurement
Applications
Basic Weighing, Simple Filling, Piece Counting, Portioning, Manual Packaging, Classification, Manual Weight Control, Labelling, Totalization, Dynamic Weighing, Tank Weighing, Truck Scale
Protection Class
IP67
Type of Device
Desk, Wall
Serial Communication
Analogue Output, RS232, RS485, USB
Industrial Communication
Ethernet TCP/IP
Wireless Communication
Bluetooth
Web/PC Access
Configuration by App, Data Collection
Digital Input & Output
Input, Output
Energy Supply
12V DC, 24V DC, 110-230V AC, Battery
Certificate
OIML
Trade Approval
Yes
Other Features
Unit Conversion, Alibi Memory, Data Logging, eCal, sCal, Multi-point adjustment
Functional Features
Main Features
• Stainless steel, IP67 protected for wet, hygienic and harsh areas
• Color changing display, SmartAPP 16 digit alphanumeric info line,
• ID1, ID2, PT, item limit values, APW memories; each 500 items record
• Automatic memory linkage to IDs
High Technology and Performance
• High resolution scales up to 999 999 display resolution
• Up to 800 conversions per second
• Application based SmartAPP
• Changing color for prompting
• High capacity tank scales supported by eCAL - electronic calibration
Typische Applicaties
• Weighing and data collection
• Customized labelling with barcode
• Counting by sample & APW memory
• Livestock and dynamic weighing with strong filtering algorithm
• Checkweighing, classifying & fillin
• Specific tare entry requirement
Interfaces en Communicatie
• 2 x RS232C, RS485, Ethernet TCP/IP and USB are standard,
• Printing via key, digital input, and serial port
• Continuous data output
• BSI command set for master slave communication

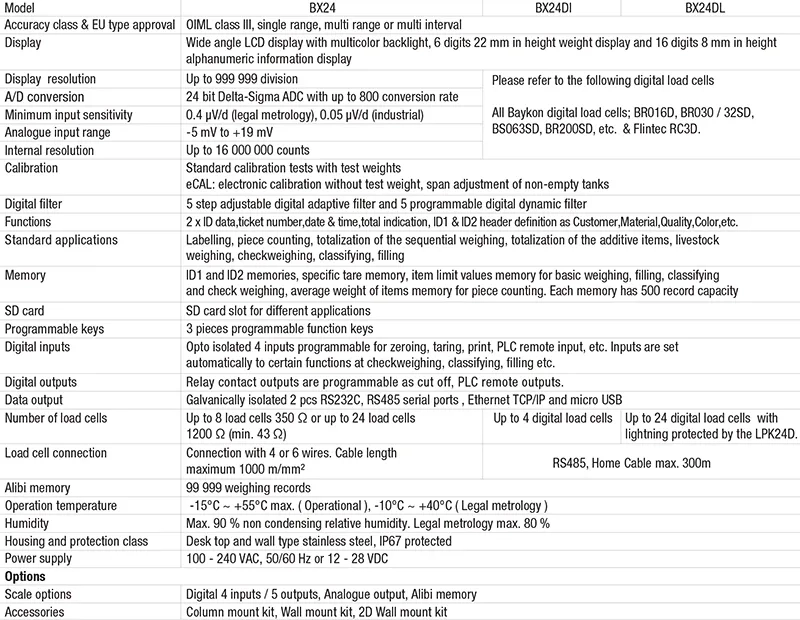

Technical Specifications
BX24/BX24D Weighing Indicator
Technical Specifications
Dimensions
