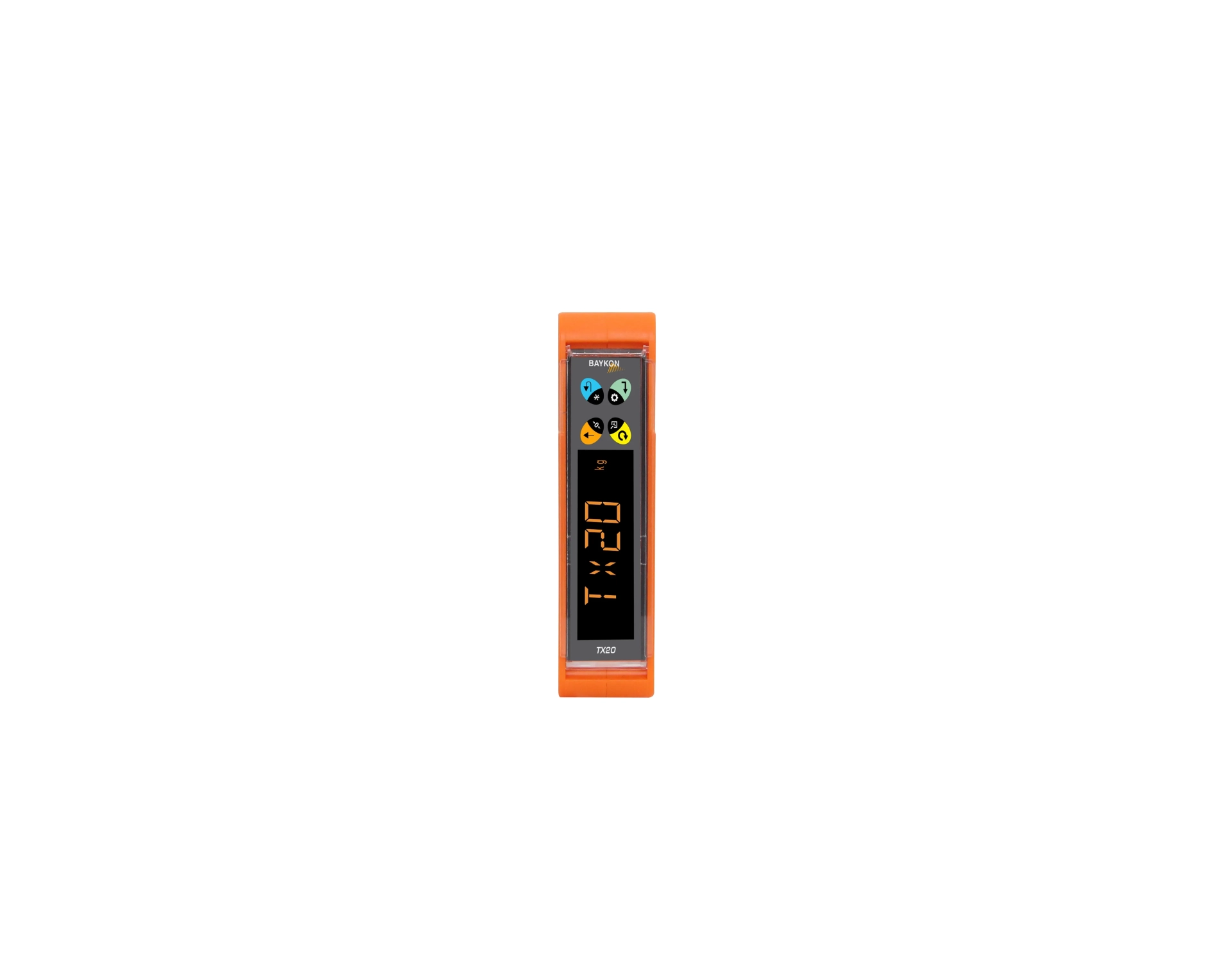

TX20 Digital Transmitter
TX20 series digital transmitter are designed for force, moment, and pressure measurement processes in addition to static and dynamic weighing. They transfer precise measurement information acquired at a high conversion rate to your PLC/SCADA/PC system in the most accurate and fastest way with industrial communication protocols. All products with Ethernet output are dual-ported to provide Ethernet daisy chain connection. TX20 can also be connected to Profinet Redundant S2 systems directly. 3 digital inputs, 4 digital outputs, and analog outputs are available as additional connection options.
TX20 transmitters are manufactured identically to each other and individually calibrated. Thanks to this feature, they can be replaced directly without needing any adjustment in the counting mode, and in the weight mode error on the electronic calibration because of replacement is less than 0.00003%.
Highlights
Measurement Type
Weight Measurement, Force Measurement, Pressure Measurement, High Resolution A/D Value
Applications
Basic Weighing, Totalization, Dynamic Weighing, Tank Weighing, Silo Weighing, Yacht - Ship Weighing, Basic Peak-Hold, Capture of Weight (HOLD), Tensile and Compressive Tests, Strength Measurement, Process Control, Force Measurement, Dosing Systems
Protection Class
IP20
Type of Device
DIN-Rail
Serial Communication
Analogue Output, RS485, USB, Modbus RTU
Industrial Communication
Modbus TCP, Ethernet TCP/IP, Profinet, Profinet S2, EtherCAT, EtherNet/IP, Powerlink
Web/PC Access
Configuration by App
Digital Input & Output
Input, Output
Energy Supply
12V DC, 24V DC
Other Features
eCal, sCal, Multi-point adjustment
Functional Features
- All Ethernet output products are dual-port for daisy chain connection
- Variant with direct connection to Profinet S2 System Redundancy
- Additional Modbus RTU communication for products with Fieldbus outputs
- High reliability with triple signal isolation
- Programming and calibration via Fieldbus
- Easy programming with Alphanumeric display
- Vibration filter: Stable reading foragitated tanks and vibrating environments
- eCal: Error-free adjustment with products calibrated in production
- Remote programming via web page (EN variant)
- Logging of device interventions and system failures

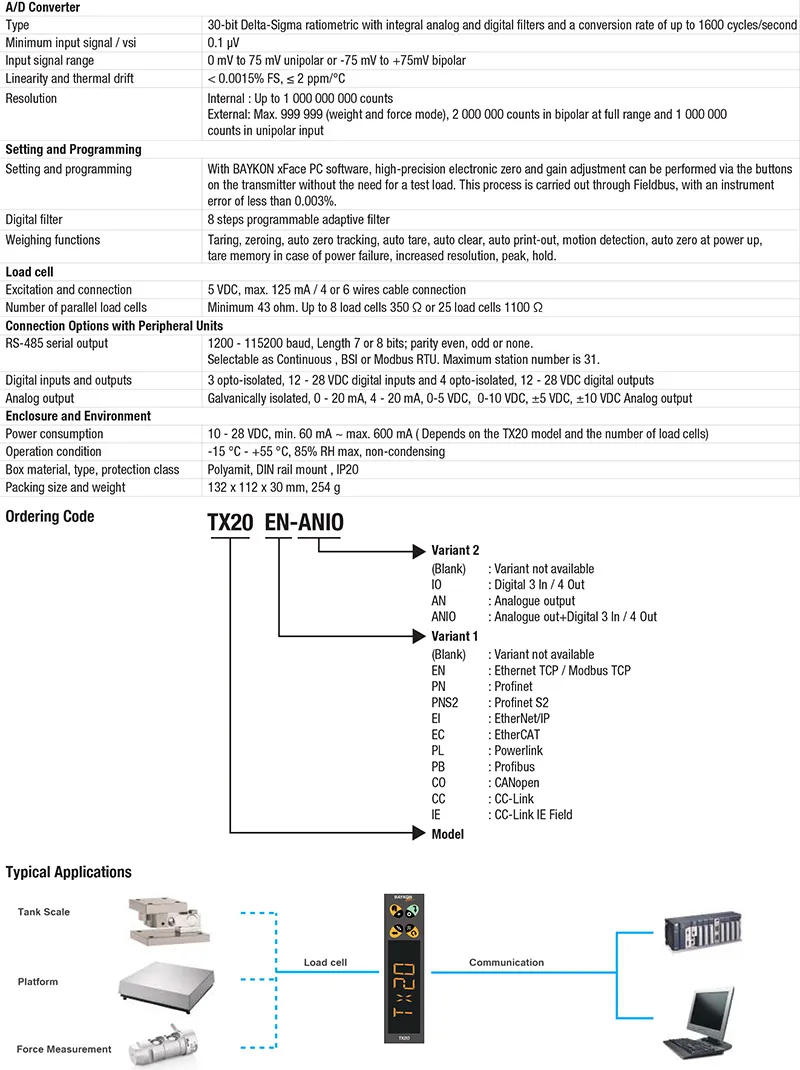

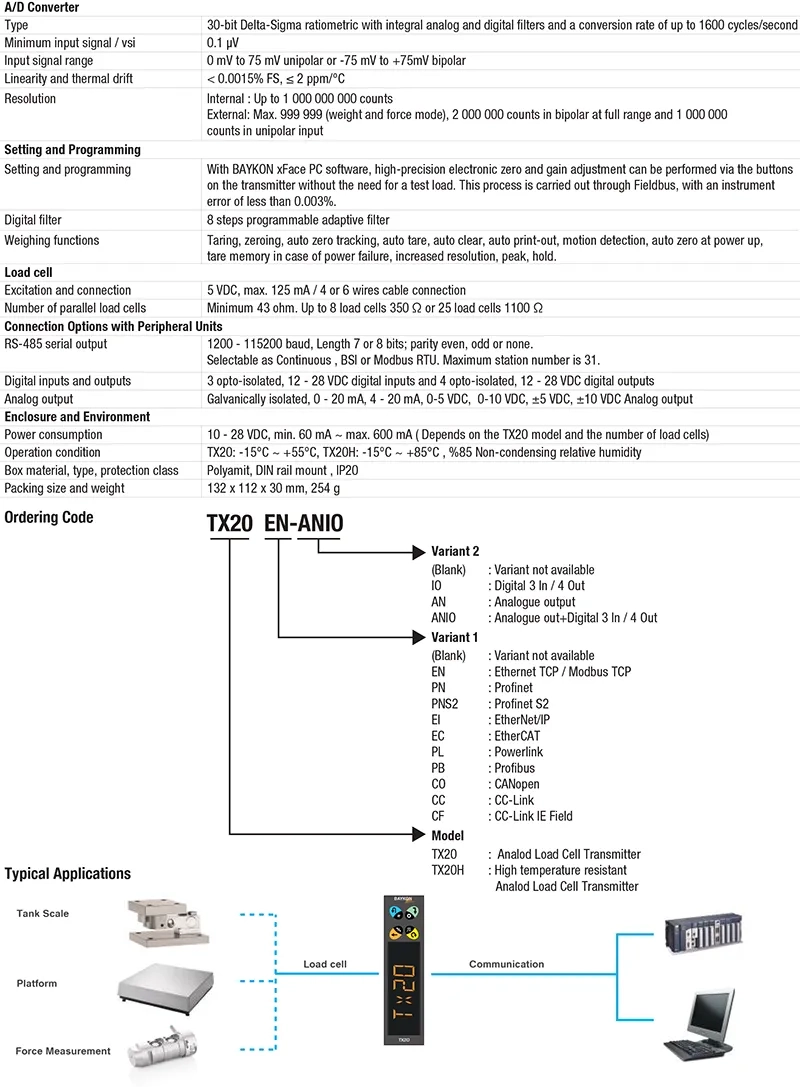

Technical Specifications
TX20 Digital Transmitter
Technical Specifications
Dimensions
