TX320Fill Filling Controller
TX320Fill is an advanced, cost-effective filling controller designed to operate on all types of packaging and filling machines.
By transferring extremely high-speed weighing process with internal resolution as high as one billion to the control outputs, it increases the accuracy and capacity of your filling or packaging machine.
As TX320Fill controllers are individually calibrated and matched during production, they can be easily adjusted with eCal electronic calibration without the test weight, while maintaining their high-precision characteristics.
It can be easily connected to the HMI or PLC on your filling machine via one of 12 different communication protocols.
Highlights
Measurement Type
Weight Measurement
Applications
Basic Weighing, Classification, Dynamic Weighing, Static Weighing, Automatic Checkweigher, Automatic Classification (Checkweigher)
Protection Class
IP20
Type of Device
DIN-Rail
Serial Communication
Analogue Output, RS485, USB, Modbus RTU
Industrial Communication
Modbus TCP, Ethernet TCP/IP, Profinet, Profinet S2, Profibus, EtherCAT, EtherNet/IP, CANopen, Powerlink, CC-Link, CC-Link IE Field
Web/PC Access
Configuration by App
Digital Input & Output
Input, Output
Energy Supply
12VDC, 24VDC
Other Features
eCal, sCal, Multi-point adjustment
Functional Features
- Cost-effective controller designed for very fast and precise filling.
- One billion internal resolution.
- Data output at one million resolution,
- Highly precise filling with a response time of less than 2 milliseconds on control outputs.
- High reliability with triple isolation,
- The effect of electronic calibration on weighing error is less than 0.003%.
- Programming and calibration via PLC/PC,
- All Ethernet-enabled products feature dual ports for daisy-chain connections,
- Variant directly connected to Profinet S2 redundant systems,
- Remote programming via web page (Ethernet variant),
- It records device interventions and system error information.

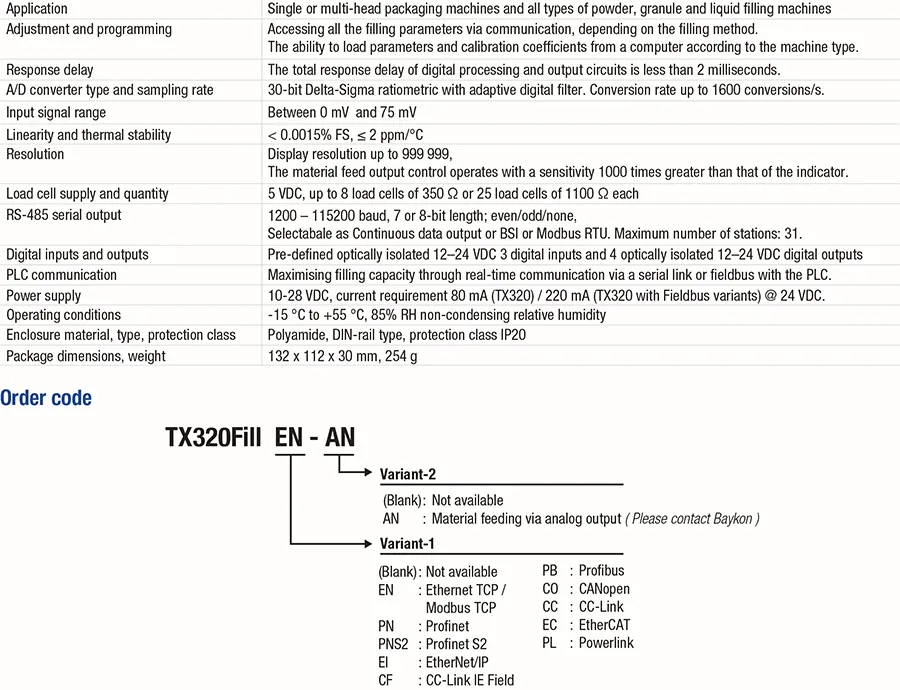

Technical Specifications
TX320Fill Filling Controller
Technical Specifications
Documents
Name
Version
Description
Category
Data Type
TX320Fill Filling Controller Catalogue
Product Catalogs
Software
Name
Version
Description
Category
Data Type
EthernetX File
Software
GSD (Profibus)
Software
GSDML (Profinet 2Port)
Software
CANopen - TX20 and TX320 Series
Software
EtherNetIP - TX20 and TX320 Series
Software
EtherCAT - TX20 and TX320 Series
Software
Powerlink - TX20 and TX320 Series
Software
GSDML (Profinet 2Port) S2 Redundancy
Software
GSDML (Profinet 2Port) MultiSlot
Software
Scale USB Driver
Software
