LP263/LP263S Single Point Load Cell
LP263 and LP263S are platform-type load cells with a wide range of capacity. LP263 has a capacity ranging from 50 kg to 750 kg while LP263S has a capacity ranging from 50 to 250 kg.
Both load cell type has OIML C3 approval and IP66 protection rating. LP263, made of aluminium and LP263S, made of stainless steel, provide excellent weighing performance in single-load cell platform applications.
For explosive atmospheres, order the ATEX approved version.
Highlights
Connection
Analogue
Type
Platform Type
Applications
Bench Scale - Small, Bench Scale - Large, Checkweighing, Conveyor Scale, Industrial Processes, Packaging & Filling
Certificate
OIML, ATEX
Material
Aluminium, Stainless Steel
Maximum Capacity
50 kg, 100 kg, 150 kg, 200 kg, 250 kg, 300 kg, 500 kg, 750 kg
Protection Class
IP66
Functional Features
Balances & Scales Manufacturing
Force Test Machines
Filling Machines
Special Weighing Applications

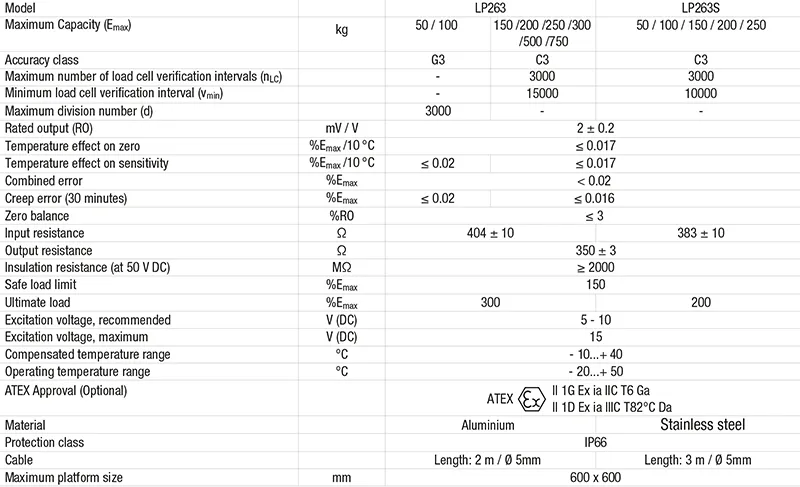

Technical Specifications
LP263/LP263S Single Point Load Cell
Technical Specifications
Dimensions
