BT610/BT610S Tension Type Exproof Load Cell
BT610 alloy steel / BT610S is stainless steel S type loadcell with IP66 / IP68 protected.
It perfectly fits for use in industrial applications such as crane scales, suspended hopper scales, convertion of mechanical scales and testing equipment
Highlights
Connection
Analogue
Type
Tension type
Applications
Explosive Environment, Crane Scales, Hanging Weighing Systems, Industrial Processes, Test Machines, Packaging & Filling
Certificate
ATEX
Material
Stainless Steel, Nickel Plated Steel
Maximum Capacity
100 kg, 200 kg, 500 kg, 750 kg, 1 t, 1.5 t, 2 t, 3 t, 5 t
Protection Class
IP66, IP68
Functional Features
Tank & Bunker Weighing Systems
Force Test Machines
Crane Scale Applications

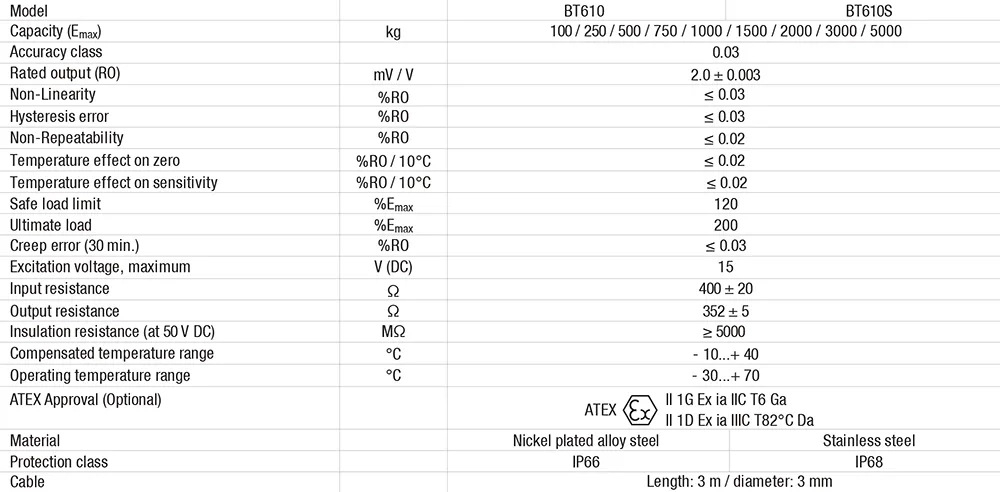

Technical Specifications
BT610/BT610S Tension Type Exproof Load Cell
Technical Specifications
Dimensions
