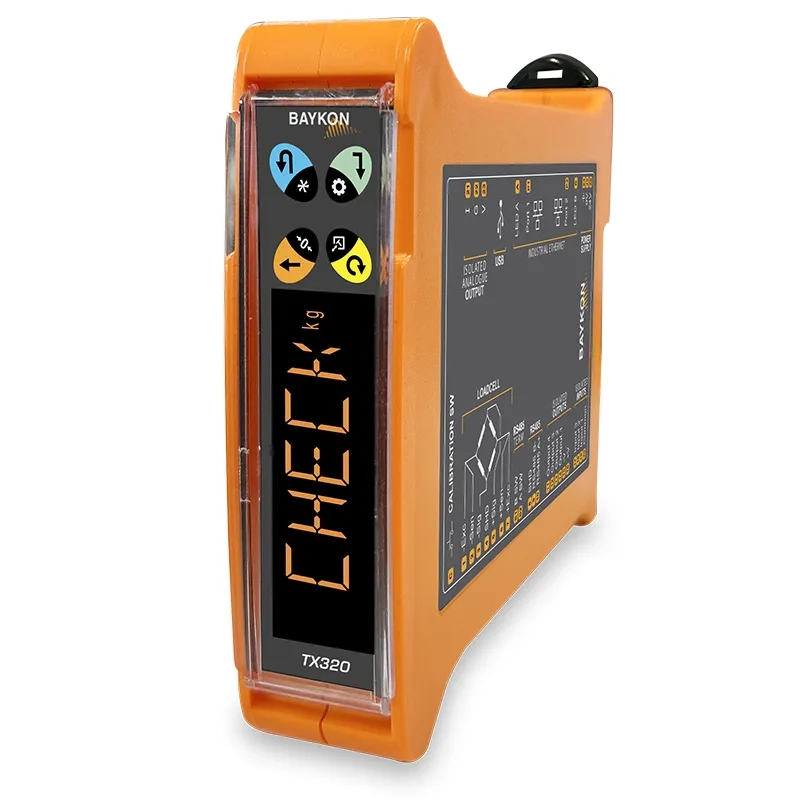

TX320Check Weighing Controller
TX320Check weighing controller is a high-tech, fast and cost-effective device for weighing, checkweighing and sorting of pre-packaged products. Capable of both static and dynamic weighing, TX320Check can be used reliably on all types of weighing conveyors, checkweighers and sorting machines.
TX320Check, by measuring the load cell signal at an extremely high resolution of 1 billion and with high precision, enhances your machine accuracy and increases its throughput of up to 200 packages per minute.
It connects easily to the HMI, PC, or PLC of your machine via one of 12 communication protocols, enabling seamless real-time data transfer..
Highlights
Measurement Type
Weight Measurement
Applications
Basic Weighing, Classification, Dynamic Weighing, Static Weighing, Automatic Checkweigher, Automatic Classification (Checkweigher)
Protection Class
IP20
Type of Device
DIN-Rail
Serial Communication
Analogue Output, RS485, USB, Modbus RTU
Industrial Communication
Modbus TCP, Ethernet TCP/IP, Profinet, Profinet S2, Profibus, EtherCAT, EtherNet/IP, CANopen, Powerlink, CC-Link, CC-Link IE Field
Web/PC Access
Configuration by App
Digital Input & Output
Input, Output
Energy Supply
10-30VDC, 12VDC, 24VDC
Other Features
eCal, Multi-point adjustment
Functional Features
- Cost-effective controller designed for very fast and accurate weighing.
- One billion internal resolutions.
- Data output at one million resolutions,
- Highly accurate weighing with load cell readings of up to 1600 cycles per second
- High reliability with triple isolation,
- Effect of electronic calibration on weighing error is less than 0.003%.
- Programming and calibration via PLC/PC,
- All Ethernet-enabled products feature dual ports for daisy-chain connections,
- Remote programming via web page (Ethernet variant),
- It records device interventions and system error information.

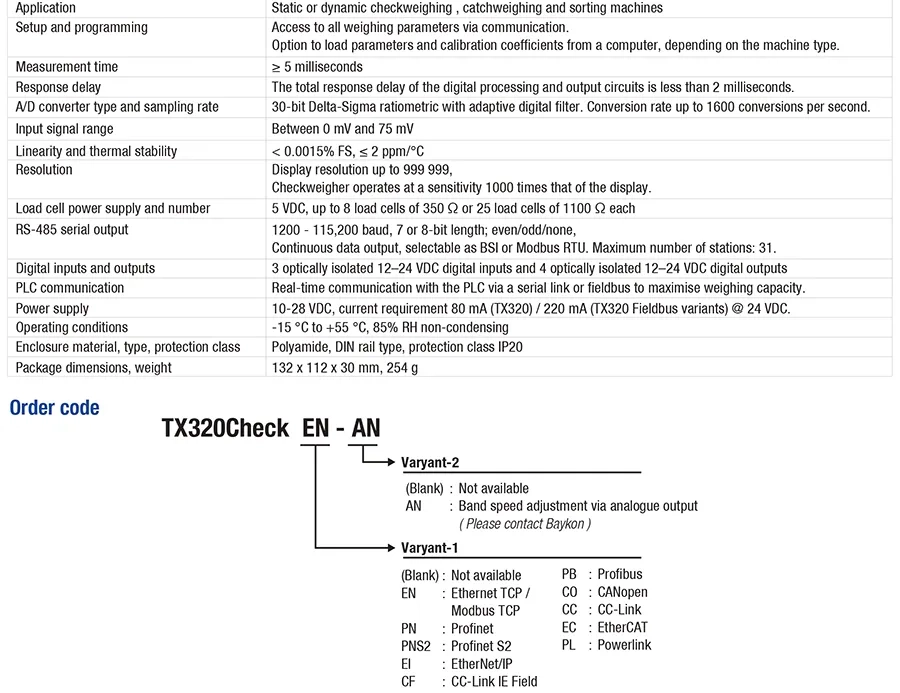

Technical Specifications
TX320Check Weighing Controller
Technical Specifications
Documents
Name
Version
Description
Category
Data Type
TX320Check Weighing Controller Catalogue
Product Catalogs
