TX16 Analogue Transmitter

TX16 analogue transmitter is a high-tech device developed for industrial applications that require a fast and accurate process. It can be reliably used in all kinds of industrial weighing, force and pressure measurement applications.



You do not need a measuring instrument for adjusting the analogue output, commissioning and servicing the TX16 since it displays the analogue output value in real time with an accuracy of 0.02%. Also, in the factory, TX16 transmitters are adjusted identically, and the difference between the outputs of TX16s after electronic calibration is less than 0.01%.



Analogue output can be set as 4-20 mA, 0-20 mA, 0-10 V, -10 / +10 V, 0-5 V or -5 / +5 V. It can be programmed and adjusted by PLC or PC.

Add to Comparison List

Highlights

Measurement Type

Force Measurement

Protection Class

IP20

Type of Device

DIN-Rail

Serial Communication

Analogue Output

Digital Input & Output

Input, Output

Energy Supply

12V DC, 24V DC

Other Features

eCal, sCal

certificates
certificates
certificates
certificates

Functional Features

Advantages

functional
  • Continuous monitoring of the analogue output value from the display
  • Easy programming with Alphanumeric display
  • Adaptive vibration filter: Stable reading for agitator tanks
  • Error-free zero and gain calibration with eCal
  • Operation with weight, force and pressure sensors

Fast and Accurate Outputs

functional
  •  Up to 1600 conversion per second
  •  40ms Analogue output rate
  •  1 000 000 000 steps internal resolution
  •  60 000 steps analogue output resolution
  •  Stable output with programmable filter

For a Wide Range of Applications

functional
  •  4 or 6 wires load cell connection
  •  3 setpoint outputs , 1 error output and 3 optoisolated inputs for zeroing
  •  Bipolar signal input and analogue output for force measurements

Widespread Areas of Use

functional
  • Tank and silo weighing
  • Compression and tensile tests
  • Force measurement
  • Stress measurement
  • Pressure measurement
  • Process control applications
  • Dosing and alarm systems

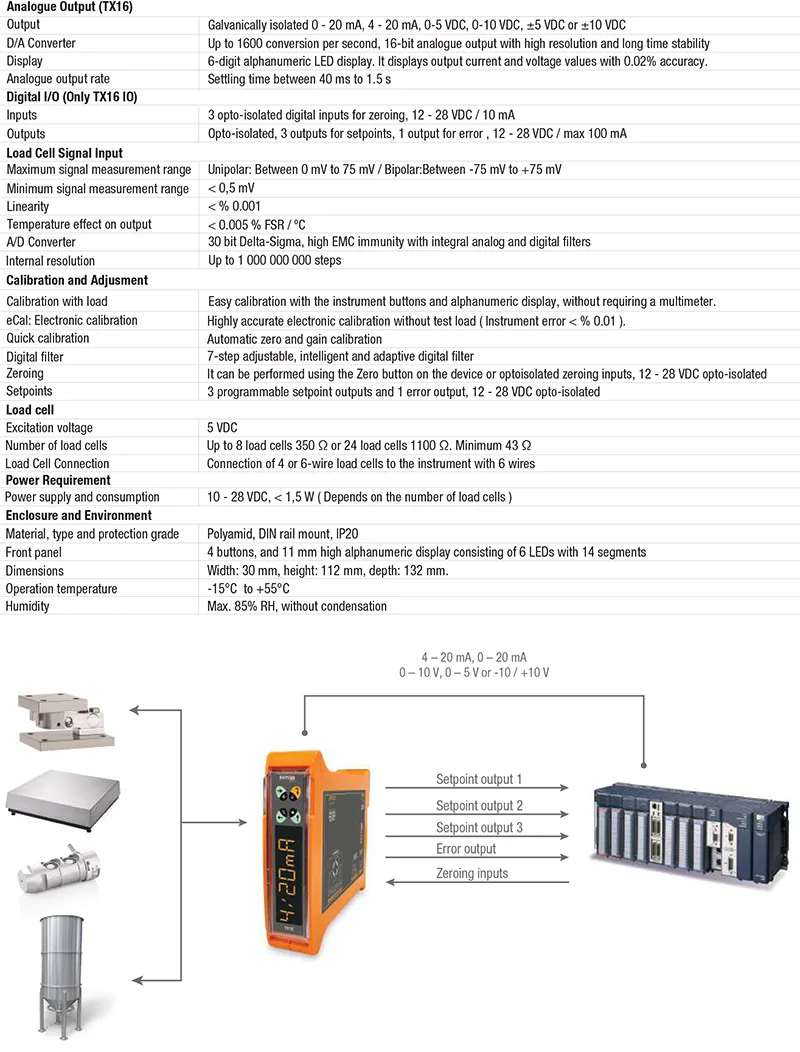

Technical Specifications

TX16 Analogue Transmitter

Technical Specifications
