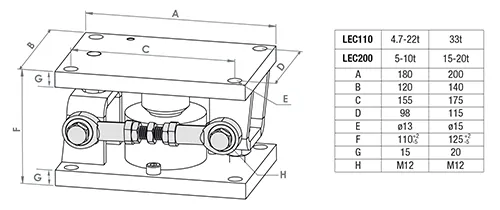

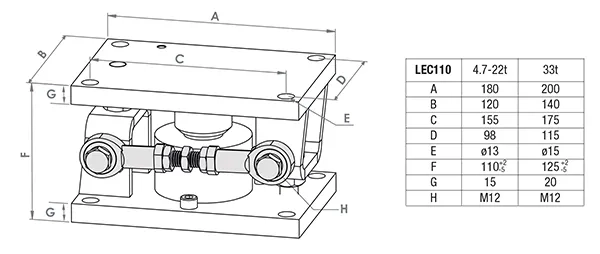

LEC Weigh Module for Ring Type

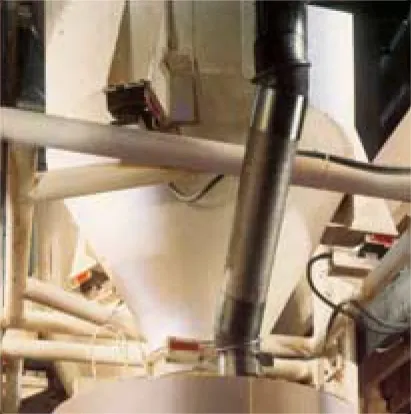

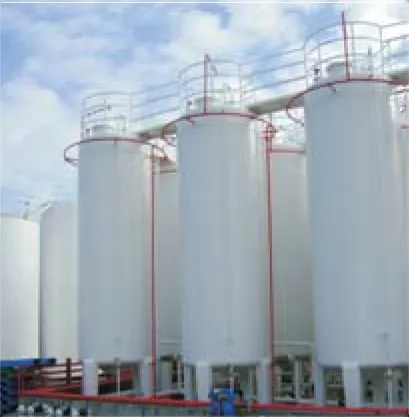

The LEC Weigh Module is specifically designed for tank, reactor, silo and conveyor scales. It is a low height module used with BR200S, BR110/110S ring type load cells. LEC Module offers installation without load cell which eliminates the risk of damage of the load cell during assembly and welding operations. In case of loadcell failure, it provides easy and quick loadcell replacement It can be used safely against lateral forces with FlexROD joint connection.

Studs on both sides of the module are secured with lift-off protection and locking nuts, allowing the LEC weigh module to be mounted without load cells. After mounting, the load cells are easily inserted from the front and the locking nuts are loosend into their correct position. The LEC module is available in static painted, galvanized and 304/316 stainless steel.

- Low module height
- High weighing accuracy
- Capacities from 1t to 33t
- Ability of mounting without load cell
- Easy and practical load cell replacement
- Integrated lift-off protection
- FlexROD against strong lateral forces
- Painted, galvanized and 304/316 stainless steel models
