BS063 / BS063S Beam Load Cell
The BS063 / BS063S is a welded nickel plated alloy steel / stainless steel load cell available in a wide range of capacities from 150 kg to 10000 kg.
With IP68 protected metric threaded and blind hole types, they are perfect choice for applications such as floor scales, conveyor, hopper and low capacity vessel weighing systems.
For explosive atmospheres, order the ATEX approved version.
Highlights
Connection
Analogue
Type
Beam Type
Applications
Floor Scales, Wet Field Scales, Pallet Scales, Mobile Weighing, Tank & Silo Weighing, Hanging Weighing Systems, Checkweighing, Conveyor Scale, Industrial Processes, Packaging & Filling
Certificate
OIML, ATEX
Material
Stainless Steel, Nickel Plated Steel
Maximum Capacity
150 kg, 250 kg, 300 kg, 500 kg, 750 kg, 1 t, 1.5 t, 2 t, 2.5 t, 3 t, 5 t, 7.5 t, 10 t
Protection Class
IP68
Connection Type
Blind Hole, Metric
Functional Features
Balances & Scales Manufacturing
Tank Weighing Systems
Force Test Machines
Silo Weighing Systems
Special Weighing Applications
Technical Specifications
BS063 / BS063S Beam Load Cell
Technical Specifications

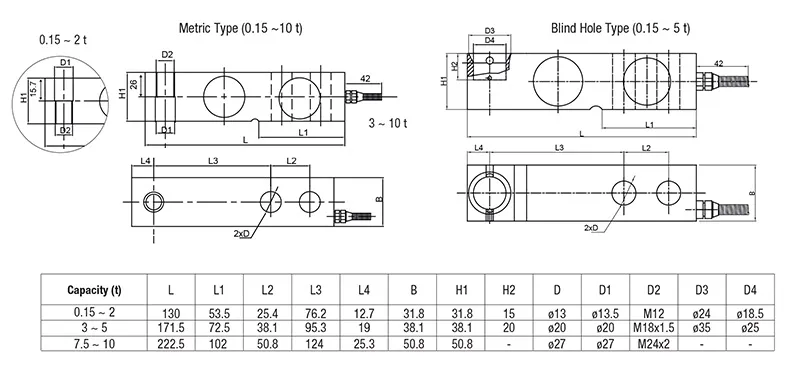

Dimensions
Download
