BR200S Ring Type Exproof Load Cell
Type BR200S is OIML R60 C3 approved, low profile, high performance stainless steel ring type load cell with complete IP68 hermetic sealing.
It has a wide capacity range from 5 t to 50 t perfectly fits for use in harsh industrial environments in food, chemical and allied process industries.
Compare
Highlights
Connection
Analogue
Type
Ring Type
Applications
Explosive Environment, Truck Scales, Tank & Silo Weighing, High Capacity Applications, Special Weighing, Industrial Processes, Test Machines, Packaging & Filling
Certificate
OIML, ATEX
Material
Stainless Steel
Maximum Capacity
2.5 t, 5 t, 10 t, 15 t, 20 t, 30 t, 50 t
Protection Class
IP68
Functional Features
Truck Scales
Wagon Scales
Silo Weighing Systems
Special Weighing Applications

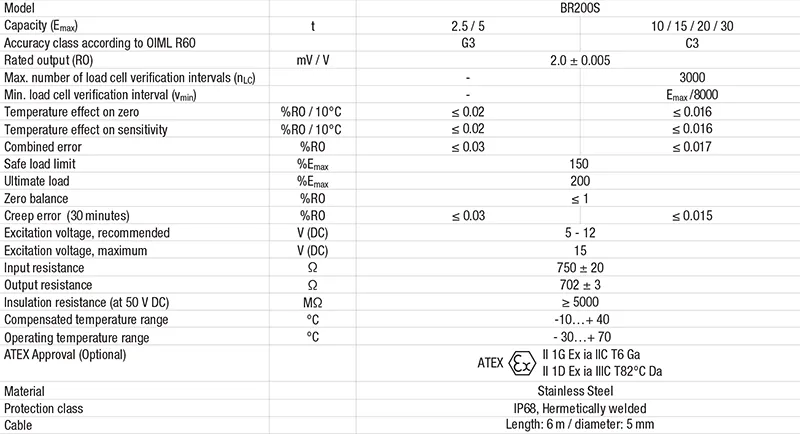

Technical Specifications
BR200S Ring Type Exproof Load Cell
Technical Specifications

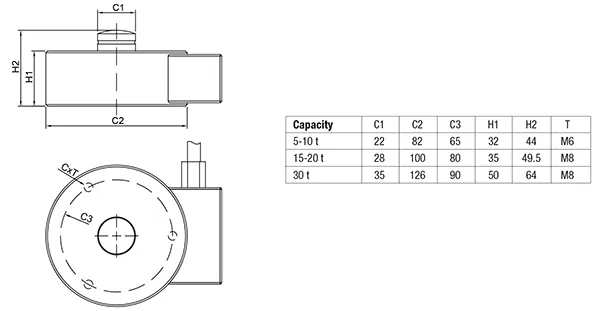

Dimensions
