BR150/BR150S Ring Type Load Cell
BR150 and BR150S are low-profile, ring type load cells that are hermetically welded and IP68-protected. These load cells are constructed in aluminium or stainless steel and are available in different capacities ranging from 1 tonne to 10 tonnes.
BR150HT version is used in high-temperature environments up to 150°C
Highlights
Connection
Analogue
Type
Ring Type
High Temperature
Yes
Applications
Truck Scales, Tank & Silo Weighing, High Capacity Applications, Special Weighing, Industrial Processes, Test Machines
Material
Stainless Steel, Nickel Plated Steel
Maximum Capacity
1 t, 2 t, 3 t, 5 t, 7.5 t, 10 t
Protection Class
IP68
Functional Features
Truck Scales
Wagon Scales
Silo Weighing Systems
Special Weighing Applications

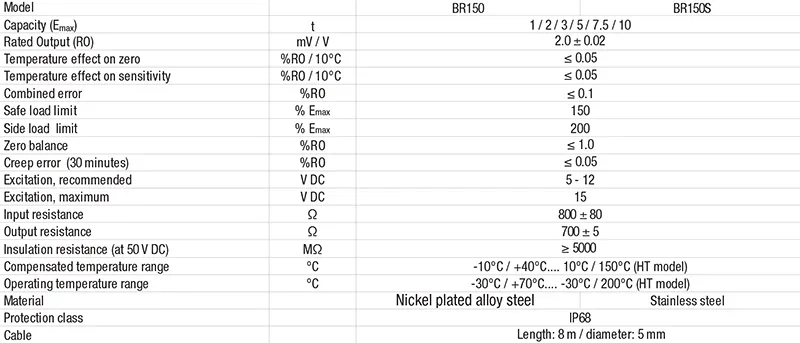

Technical Specifications
BR150/BR150S Ring Type Load Cell
Technical Specifications
Dimensions
