BK Series Floor Scales
Baykon BK Series Floor Scales with their high quality standards, they are designed to work accurately and precisely in harsh industrial areas for years.
They are available from 300 kg to 15000 kg capacities with sizes up to 150x200 cm as various standard sizes and free sizes according to customers’ requests. Depending on the working environment; static painted, galvanised and full stainless steel models can be selected.
Baykon BK series floor scales are compatible with OIML standards and it is produced according to European directives up to 2 x 3000d multi range accuracy classes.
Baykon BK series floor scales are used in food, cosmetic, metal and metallurgy, logistic, chemical and in all industries at every point; from raw material input to production and packing lines, to warehouse entrance and product shipping. There is always a BK scale for every level of your weighing needs and for any kind of industrial environment such as dusty, heavy wash down, hygienic, hazardous.
Highlights
Applications
Overground Scales, Underfloor Scales, Pallet Scale, Barrel Scale, Coil Weighing, Piece Counting
Material
Static Painted, Stainless Steel (304)
Maximum Capacity
150 kg, 300 kg, 600 kg, 1 t, 1.5 t, 3 t, > 3 t
Precision
10 g, 20 g, 50 g, 100 g, 200 g, 500 g, 1.000 g
Environment
Dusty and Slightly Wet Environment (IP65), Washable Environment (>= IP66)
Protection Class
IP65, IP68
Explosive Field
Zone 2
Functional Features
Reliable Weighing
• Rugged industrial quality
• Low profile, standard four load cell or application oriented design
• Three types for pit and pitless use
• Over load and shock protection
Industrial Applications
•Depending on the working environment; painted, galvanised and full stainless steel structure and load plate
• Industrial applications are protected according to IP68, and qualified for hazardous areas
Functionality
• Fast and accurate weighing
• Efficient modular structure
• OIML approval for legal trade
• Advanced or simple weighing applications; Labelling, formulation, piece counting,filling, formulation classifying, checking, dynamic weighing, packaging
• Expandable with accessories, like ramps, stands and wall mounting kidds are available
ERP / Process Integration
Digital I/O, RS485, Ethernet, analogue output, Modbus, Profibus, Profinet, CANopen

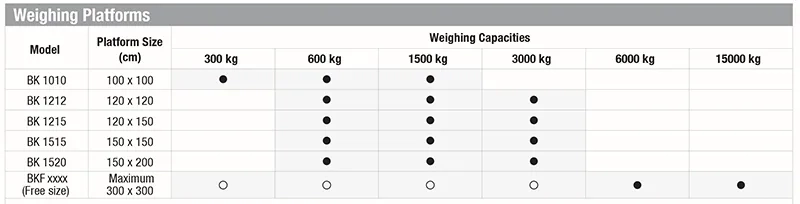

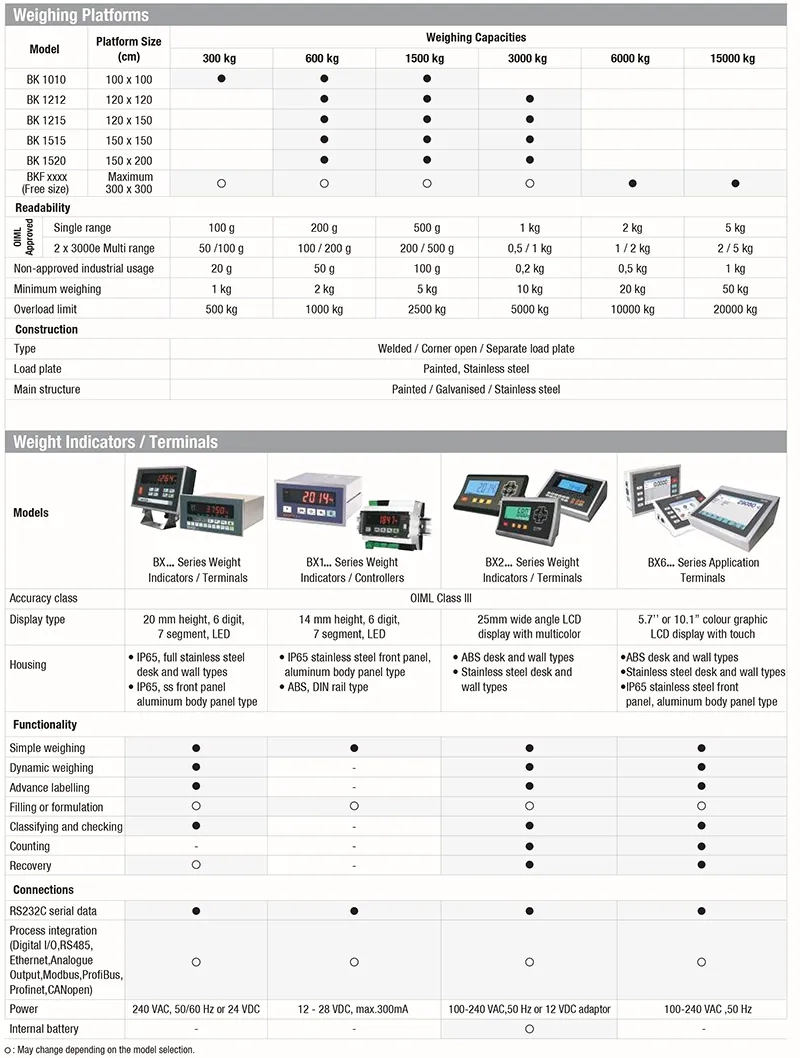

Technical Specifications
BK Series Floor Scales
Technical Specifications
Dimensions
