Transmetteur numérique TX20
TX20 series digital transmitters are designed for force, moment, and pressure measurement processes in addition to static and dynamic weighing.
They transfer precise measurement information acquired at a high conversion rate to your PLC/SCADA/PC system. All products with Ethernet output are dual-ported to provide Ethernet daisy chain connection. TX20 can also be integrated to Profinet Redundant S2 systems directly.
TX20 transmitters can be easy programmed with alphanumeric display which are manufactured identically to each others and individually calibrated.
As a result of this feature, they can be replaced without needing any adjustment in the counting mode, and in the weight mode error.
Points forts
Type de Mesure
Mesure du Poids, Mesure de la Force, Mesure de la Pression, Valeur A/D haute Résolution
Applications
Pesée simple, Totalisation, Pesée dynamique, Pesée des citernes, Pesage de Silo, Pesée des yachts et des navires, Maintien facile de la valeur de crête, Capture du poids (HOLD), Tensile and Compressive Tests, Mesure de la Force, Contrôle des Processus, Force Measurement, Systèmes de Dosage
Classe de protection
IP20
Type d'appareil
DIN-Rail
Communication sérielle
Sortie analogique, RS485, USB, Modbus RTU
Communication industrielle
Modbus TCP, Ethernet TCP/IP, Profinet, Profinet S2, Profibus, EtherCAT, EtherNet/IP, CANopen, Powerlink, CC-Link, CC-Link IE Field
Accès Web/PC
Configuration par App
Entrées et sorties numériques
Entrée, Sortie
Approvisionnement en énergie
12V DC, 24V DC
Other Features
eCal, sCal, Ajustement multipoint

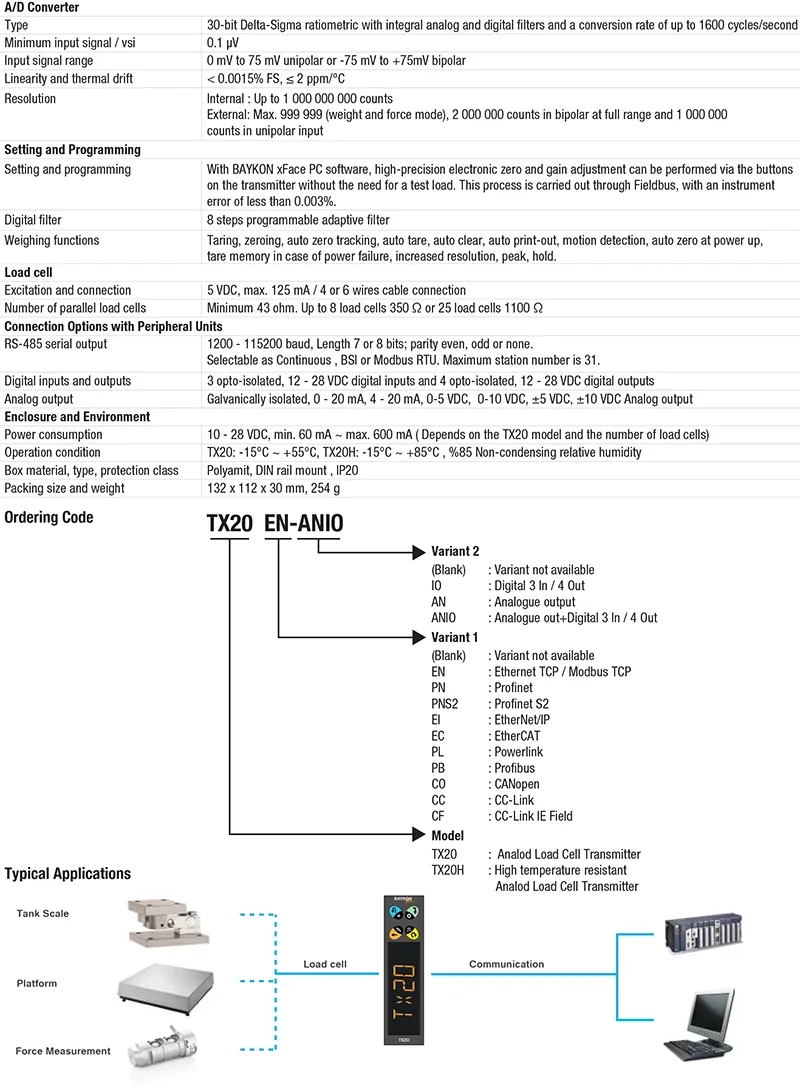

Caractéristiques fonctionnelles

- One billion internal resolution, One million data output resolution
- Electronic calibration replacement is less than 0.003%.
- All Ethernet output products are dual-port for daisy chain connection
- Variant with direct connection to Profinet S2 System Redundancy
- High reliability with triple signal isolation

- Programming and calibration via Fieldbus
- Vibration filter: Stable reading for agitated tanks and vibrating environments
- Remote programming via web page (EN variant)
- Logging of device interventions and system failures
