TX20Flow
TX20Flow impact plate flow scale controller is a high-tech instrument developed for fast and precise flow control of powder and granular materials.
TX20Flow can be used reliably in mixing applications such as all kinds of grains (wheat, rice, etc.) and nuts.
TX20Flow calculates the flow rate and flow quantity of product through the flow balancer system and controls the feeder to adjust the flow, ensuring that the targeted working capacity is realized with high precision.
Highlights
Measurement Type
Weight Measurement
Applications
Basic Weighing, Totalization, Dynamic Weighing, Tank Weighing, Silo Weighing, Dosing Systems, Flow Rate Control, Tempering Systems, Blending Systems
Protection Class
IP20
Type of Device
DIN-Rail
Serial Communication
Analogue Output, RS485, USB, Modbus RTU
Industrial Communication
Modbus TCP, Ethernet TCP/IP
Web/PC Access
Configuration by App
Digital Input & Output
Input, Output
Energy Supply
5V DC, 24V DC
Other Features
eCal, sCal, Multi-point adjustment
Functional Features
Commonly Used Areas
- Food industry,
- Flour and semolina mills,
- Feed mills,
- Formulation units,
- Tempering units, and
- Blending units,used in impact plate flow control scales.
For broader ranges of use
- 3 different operating modes,
- Single or Dual speed, flow control,
- Motor control via analogue or digital output,
- Detection of start/stop, lower auger running via digital input.
Fast and Precise Flow Control
- Up to 1600 conversions per second,
- 1 000 000 000 counts internal resolution,
- 60 000 counts analogue output resolution,
- Fast control with adaptive filter.
Advantages
- Programmable flow rate,
- Continuous monitoring of the flow rate in kg/hour format on display,
- Easy programming with Alphanumeric Display,
- 3 point load cell linearization,
- Highly accurate total value.

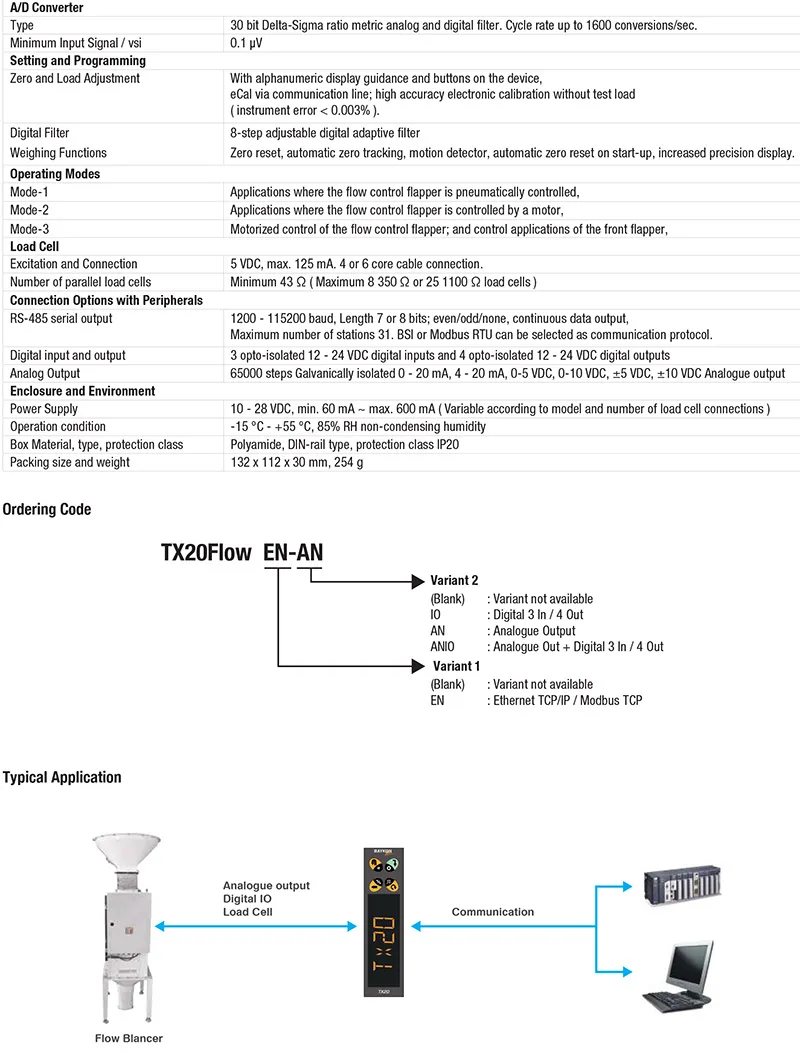

Technical Specifications
TX20Flow
Technical Specifications
